TubeTrace with FP™ (Electrically Heated Tubing Bundles)

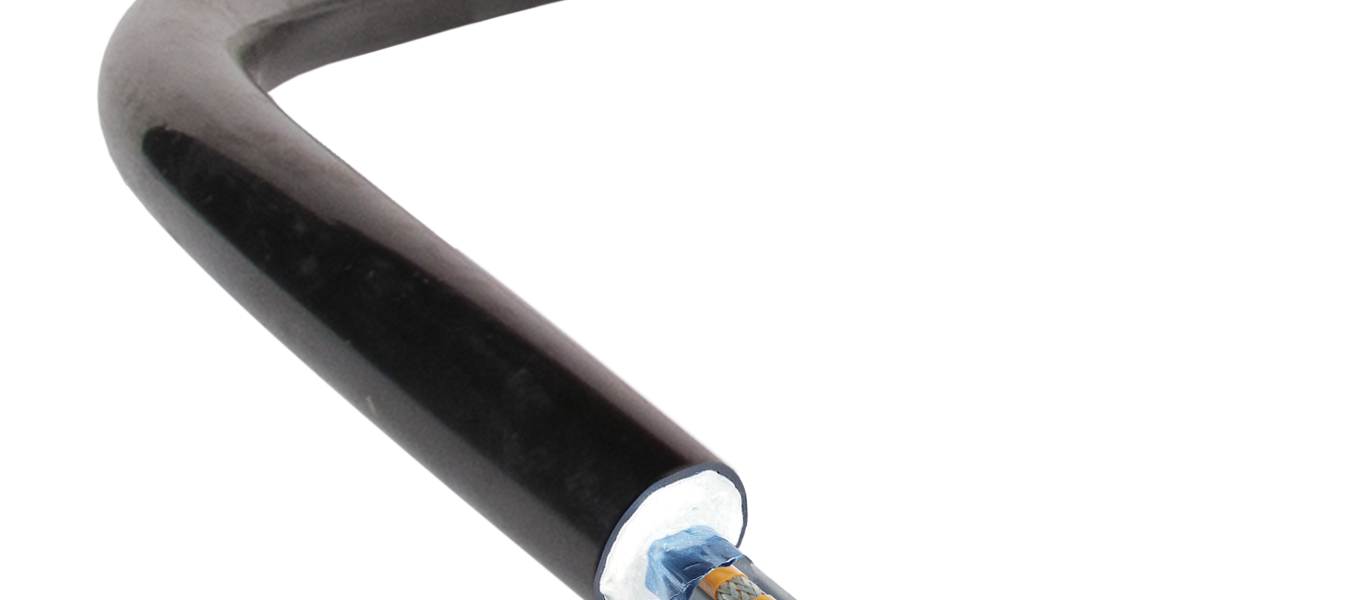

TubeTrace with FP™

TubeTrace, with “cut-to-length” FP constant watt heat tracing, is designed to provide freeze protection or temperature maintenance for tubing. The construction of FP heat trace makes it exceptionally durable and suitable for emissions and process analyzer applications. FP constant watt heat tracing provides:

• Consistent watt density per unit length.

• Not subject to high inrush current on start-up

• No need for oversizing circuit breakers.

• Approved for use in hazardous (classified) areas.

• Long circuit lengths

FEATURES

• Freeze protection
• Low process temperature maintenance
• No steam clean
• Certified for use in ordinary (non-classified) areas and in potentially explosive atmospheres

APPLICATION
TubeTrace, with “cut-to-length” FP constant watt heat
tracing, is designed to provide freeze protection or
temperature maintenance for tubing from 40°F (5°C) to
200°F (93°C)
The construction of FP heat trace makes it exceptionally
durable and suitable for emissions and process analyzer
applications.
FP constant watt heat tracing provides:
• Consistent watt density per unit length
• Not subject to high inrush current on start-up
• No need for oversizing circuit breakers
• Approved for use in hazardous (classified) areas
• Long circuit lengths

CONSTRUCTION

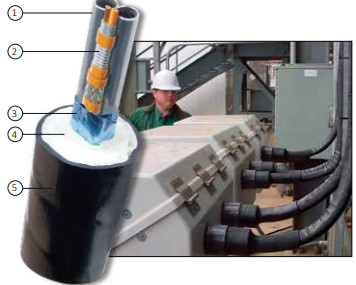

1 Process tube
2 FP constant watt electrical heat tracing
3 Heat reflective tape
4 Non-hygroscopic glass fiber insulation
5 Polymer outer jacket (ATP or TPU available)

TUBETRACE ACCESSORIES
A variety of termination kits and accessories for TubeTrace
SE/ME bundles are available and can be found on Form
CLX0020.
ELECTRICAL HEAT TRACE ACCESSORIES
Power connection and termination kits for FP constant
watt heat trace (Form CLX0024) and a variety of controls
are all available for heated instrument tubing applications.
For additional information on FP see Form TEP0016. For
information on other Thermon heat tracing products and
services, visit WILI.COM.VN

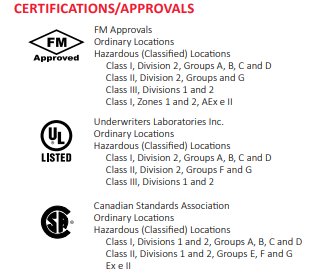

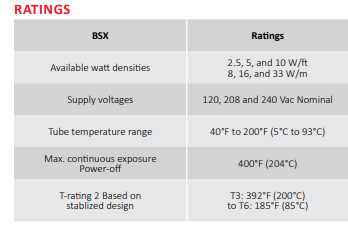

Notes

1. Higher operating voltages between 277 to 600 Vac may be possible with special
   FP heat trace construction: contact Thermon for design assistance.
2. For hazardous (classified) areas, FP constant-watt electrical heat trace can be
   designed using stablized design method. This enables the heat trace to operate
   without limiting thermostats.
