Thermon KSR heating cables

thermon KSR self-regulating heating cables are an integral part of Thermon’s SnoTrace™ snow and ice melting systems. Designed and approved specifically for direct burial, thermon KSR cable withstands the abuse encountered during concrete placement. The self-regulating heat output of KSR cable varies in response to the surrounding concrete temperatures. When the concrete is at or below freezing temperatures, thermon KSR will deliver the maximum power output. As the concrete warms up, the power output of the cable will decrease. Energy efficiency can be accomplished without special or sophisticated controls.

FEATURES

Determining the circuit layout of thermon KSR cable for a snow and ice melting system is easy. With cut-to-length parallel circuitry, thermon KSR cables are easily adapted to variations in design found at the job site.

Application: Snow and Ice Melting

thermon KSR self-regulating heating cables are an integral part of
Thermon’s SnoTrace™ snow and ice melting systems.
Designed and approved specifically for direct burial,
thermon KSR cable withstands the abuse encountered during
concrete placement.
The self-regulating heat output of KSR cable varies in
response to the surrounding concrete temperatures.
When the concrete is at or below freezing temperatures,
thermon KSR will deliver the maximum power output. As the
concrete warms-up, the power output of the cable will
decrease. Energy efficiency can be accomplished
without special or sophisticated controls.

Easy to Design . . .
Determining the circuit layout of KSR cable for a snow
and ice melting system is easy. The step-by-step design
guide leads the reader through determining the heating
requirements, selecting the cable spacing and establishing the number of heating circuits and accessories
required to complete the SnoTrace system. (For more
information, refer to the SnoTrace KSR Design Guide,
Form CPD1057.

With cut-to-length parallel circuitry, KSR cables are
easily adapted to variations in design found at the job
site. This can reduce or eliminate the need to redesign
circuits off-site without details or sufficient time to
react.

Easy to Install . . .

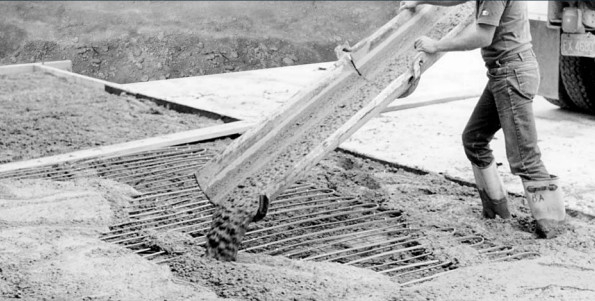

The demanding environment associated with forms,
reinforcing steel and concrete placement requires that

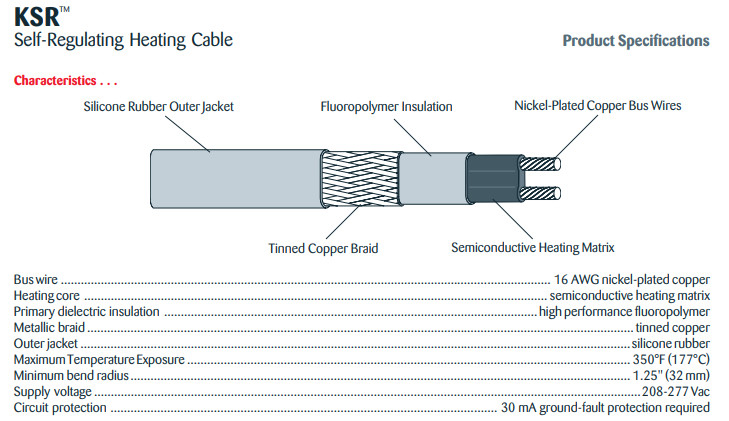

the cable be rugged. The fluoropolymer jacketed KSR
with an additional silicone rubber outer jacket provides
the needed durability. Yet it is flexible enough to adapt
to steps, curved walkways, landings or other confined
areas.
Installing and terminating the cable is easy. Simply
unreel the amount of cable needed for the area/circuit
and terminate with Thermon circuit fabrication kits and
accessories. Power connection, splice kits, end termination and expansion joint kits are all designed specifically for the demanding application.
