Apollo ProFlow static balancing valve FODRV
Apollo ProFlow static balancing valve FODRV
1260

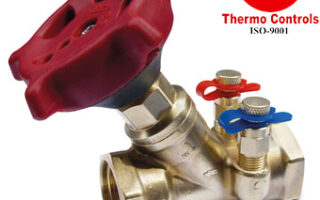

The type 1260 Apollo ProFlow balancing valve has female thread connections and is a wide range balancing valve with shut off function and fixed orifice (FODRV). The fixed orifice allows fast and accurate flow measurements with fixed Kv-value while the robust grip handle provides easy control. The numeric position indicator and memory stop assures optimal adjustment to the design flow. Type 1260 valves are available with several connection technologies in sizes DN15-DN50.
- fixed orifice
- includes test points
- easy turn grip handle with numeric position indicator
- grip handle with memory stop
- compact design
| color | brass |
|---|---|
| materials | brass (CW511L (lead-free)) |
| finishing | none |
| manufacturer | Pegler Yorkshire |
| shape | straight (0º) |
| connection type | G – female thread gas cylindrical (BSPP) |
| pressure rating (PN) | PN 25 |
| sealing | EPDM |
| 126599 | G1/2″ (DN15) ULF | 0.46 kg | 131x90x118 mm | bag (1 pce) | 05022050615657 |
| 126600 | G1/2″ (DN15) LF | 0.46 kg | 131x90x118 mm | bag (1 pce) | 05022050615688 |
| 126601 | G1/2″(DN15) MF | 0.46 kg | 121x90x107 mm | bag (1 pce) | 05022050615718 |
| 126602 | G1/2′ (DN15) SF | 0.46 kg | 121x90x107 mm | bag (1 pce) | 05022050615749 |
| 126603 | G3/4″ (DN20) SF | 0.53 kg | 122x90x114 mm | bag (1 pce) | 05022050615770 |
| 126604 | G1″ (DN25) SF | 0.79 kg | 140x90x131 mm | bag (1 pce) | 05022050615800 |
| 126605 | G1 1/4″ (DN32) SF | 1.3 kg | 159x90x154 mm | bag (1 pce) | 05022050615831 |
| 126606 | G1 1/2″(DN40) SF | 1.58 kg | 166x90x163 mm | bag (1 pce) | 05022050615862 |
| 126607 | G2″ (DN50) SF | 2.52 kg | 196x90x195 mm | bag (1 pce) | 05022050615893 |
