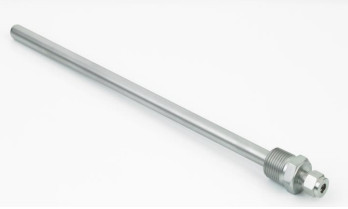

Thermowell with Integral Compression Fitting

Description

Fabricated Thermowell with ½ inch integral compression
fitting to suit 6.0mm diameter sensors.
Designed for use with thermocouples or resistance
thermometers (Pt100’s) this range of fabricated pockets is
manufactured from 316 stainless steel and has an integral
compression fitting and olive to suit 6mm diameter probes.
The outside diameter is 11mm and has a ½” BSP tapered or
parallel male thread to screw into the process; supplied in
standard 50, 100, 150, 200, 250, 300 & 500mm lengths.
The use of a thermowell allows the interchange of sensors
without interrupting or loss of integrity of the application.
Our fabricated thermowells have many options available
and can be manufactured to suit your needs with BSP and
NPT parallel and tapered threads, lengths made to order
and diameters to suit any probe, such as 3mm, 8mm,
10mm or 12mm.
