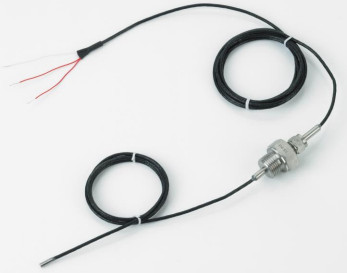

Oil Seal RTD

Description

Oil seal resistance thermometer designed to maintain
integrity between two environments.
The oil seal resistance thermometer sensors have a Pt100
Class B element housed in a 4mm diameter stainless steel
tip 12mm long. This then has a PFA insulated lead wire,
available in standard lengths of 1, 1.5, 2 & 3 metres. The
cable then enters a stainless steel pressurised transition
piece 6mm (D) x 75mm (L) which allows a compression
fitting (sold separately) to be attached in order to seal a
chamber. The sensor is complete with a 2 metre PFA
insulated flexible lead wire as standard.
These sensors are generally bespoke manufactured to
customers’ requirements and can be made entirely to your
specifications.
The RTD can be supplied in either simples (single sensor) or
duplex (dual sensors) 3 wire versions, with the construction
designed to maintain the integrity between two
environments, specifically oil seals in bearing housings.
However, the sensor can be used in any (non-water or
steam) application where the user wants an impervious
seal.
