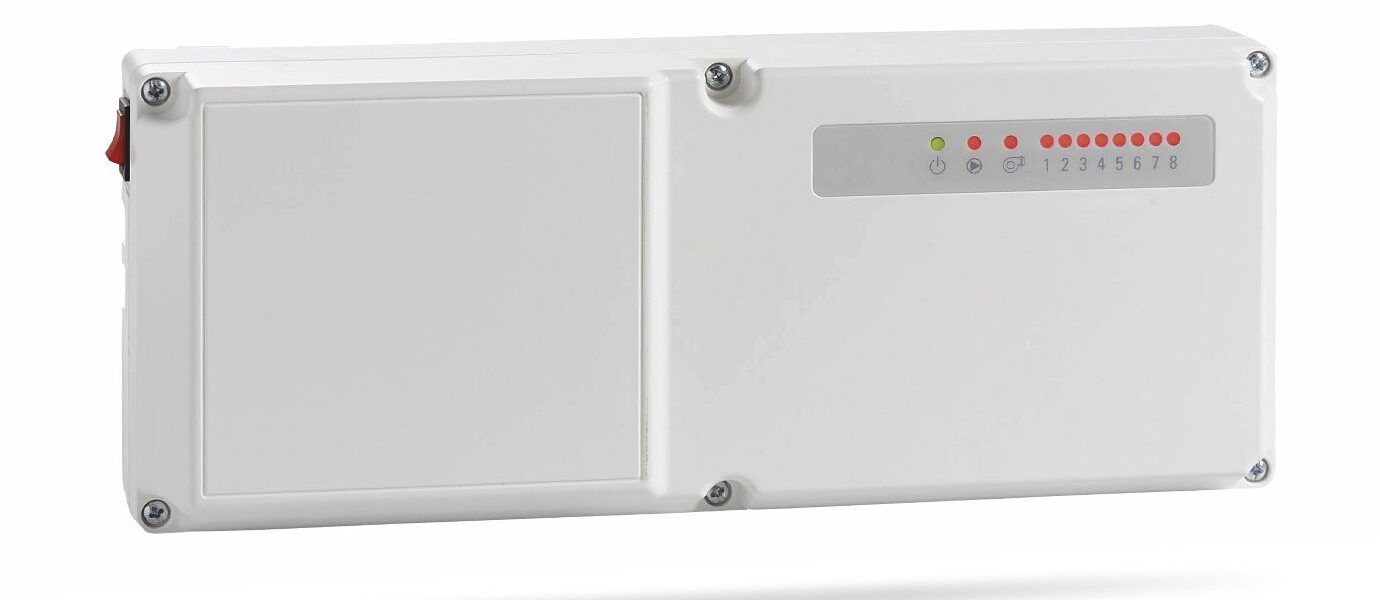

8 channels wiring box pump and boiler control

Electronic control for floor heating systems, with 230V~ power supply. The control offers the possibility to connect up to 8 channels, with a thermostat (24V~ for ALCD08M02) and up to 5 actuators (24V~ for ALCD08M02) each. Pump output with fixed delay time of 2.5 minutes, boiler control output and input for an external clock for the activation of the section of the actuators and thermostats.

Here below main features:

• 8 channels
• every thermostat drives up to 5 actuators
• Pump relay output and boiler interlock output
• LED indication and alarm status
