THERMON TUBETRACE WITH HPT
APPLICATION
TubeTrace, with “cut-to-length” HPT power-limiting
heat tracing, is designed to provide freeze protection
or temperature maintenance from 40°F (5°C) to 350°F
(177°C) for tubing where high temperature exposure
capability is possible. HPT withstands temperature
exposures of 500°F (260°C).
The composite construction of the heating element and
fiber substrate, plus an additional fiber cushion layer, make
HPT an exceptionally durable heating cable. Durability has
made TubeTrace with HPT the industry standard for high
temperature emissions and process analyzer applications.
Power-Limiting HPT heat tracing:
• Varies in response to the surrounding conditions along
the entire length of a circuit.
• Lower risk of overheating the tube or product than with
constant watt designs.
• HPT is approved for use in ordinary (non-classified)
areas and hazardous (classified) areas.

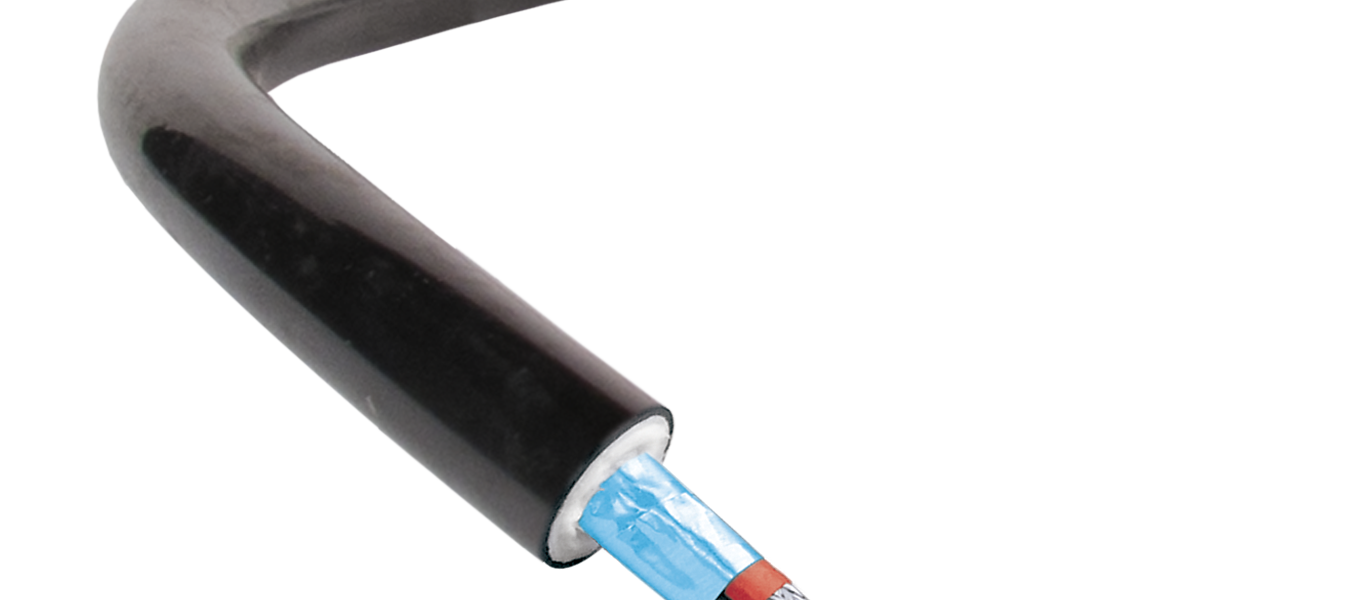

CONSTRUCTION
1 Process tube
2 HPT power-limiting electrical heat tracing
3 Heat reflective tape
4 Non-hygroscopic glass fiber insulation
5 Polymer outer jacket (ATP or TPU available)
PRODUCT FEATURES
• Power-limiting
• Low start-up current
• “Cut-to-length”
• Hazardous area approvals
